Amflow PL Carbon Pro (800 Wh)

Regular price $13,999.00
Sale price $13,999.00 Regular price
Sale Add to cart
Unit price
/per
Tax included. Shipping calculated at checkout.
Size:
This item currently takes an additional 2-5 Business Days to ship.

Buy now, pay later options available. Surcharge applies.

Expert support Call: 8365 3569

Secure online checkout

Amflow PL Carbon Pro (800 Wh)

Pre-Order (Expected arrived in May 2025)

The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 19.2 kg. [1] With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.

A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride.





Key Features

5 Modes, Effortless Assistance

Auto mode adapts assistance in real-time. Activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.

  • Light Motor, Powerful Drive -
  • Ultra-Light Streamlined Frame - The 19.2kg build uses an ultra-light carbon fiber frame that weighs just 2.27 kg
  • 800Wh Batt., 3x Fast Charging - the bike can reach a range of 157 km.
  • Versatile Geometry - 64.5° head tube angle, a 445mm chainstay length, and a 77° seat tube angle
  • Built-in Touchscreen Display
  • Intelligent Walk Assist

Amflow PL Carbon Pro (600Wh/800Wh)

Frame

Amflow PL Carbon Frame
Cosmic Black
150mm rear travel
Compatible with 27.5" and 29" rear wheels

E-Bike System

Avinox M1 Drive Unit: 105 N·m

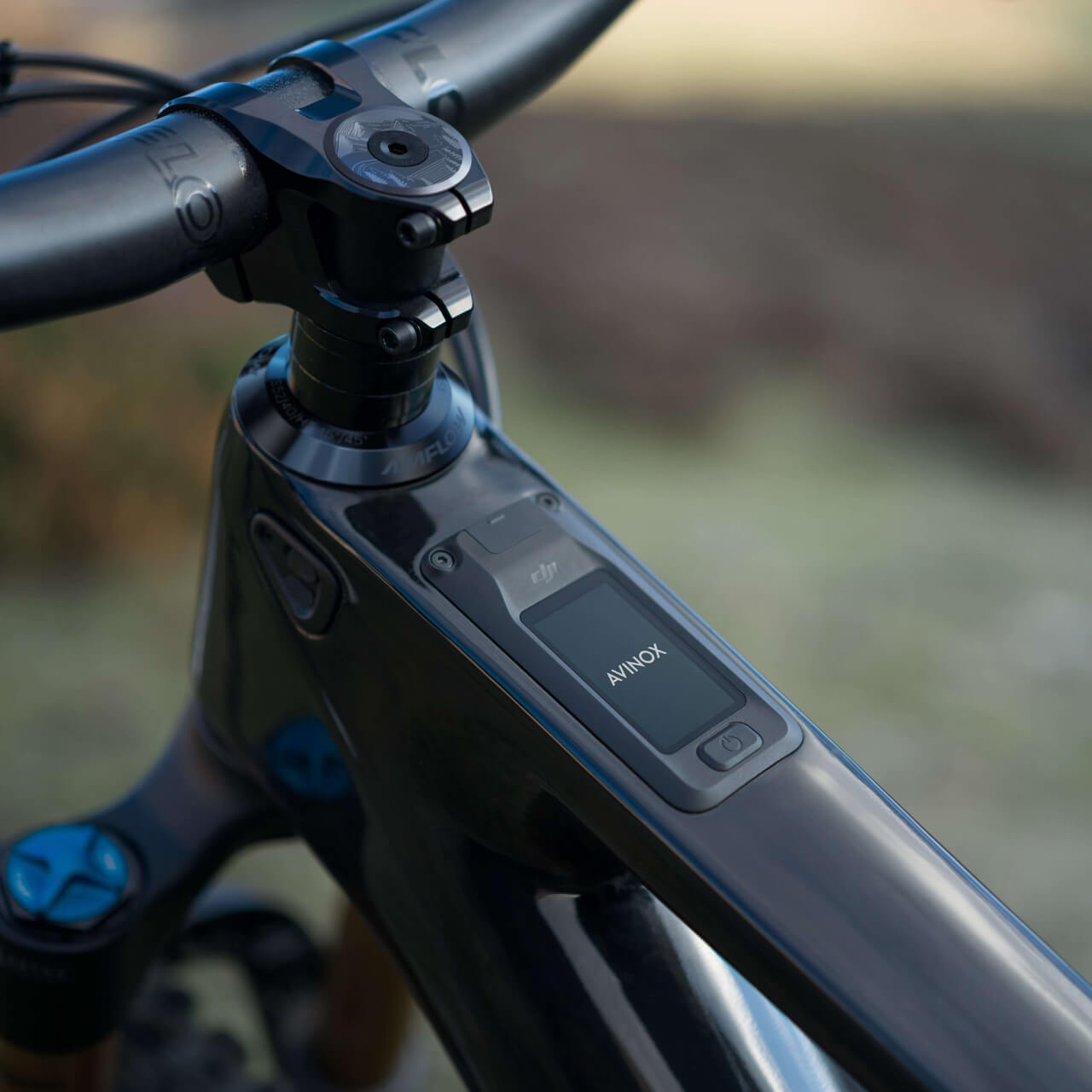

Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 600Wh/800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W

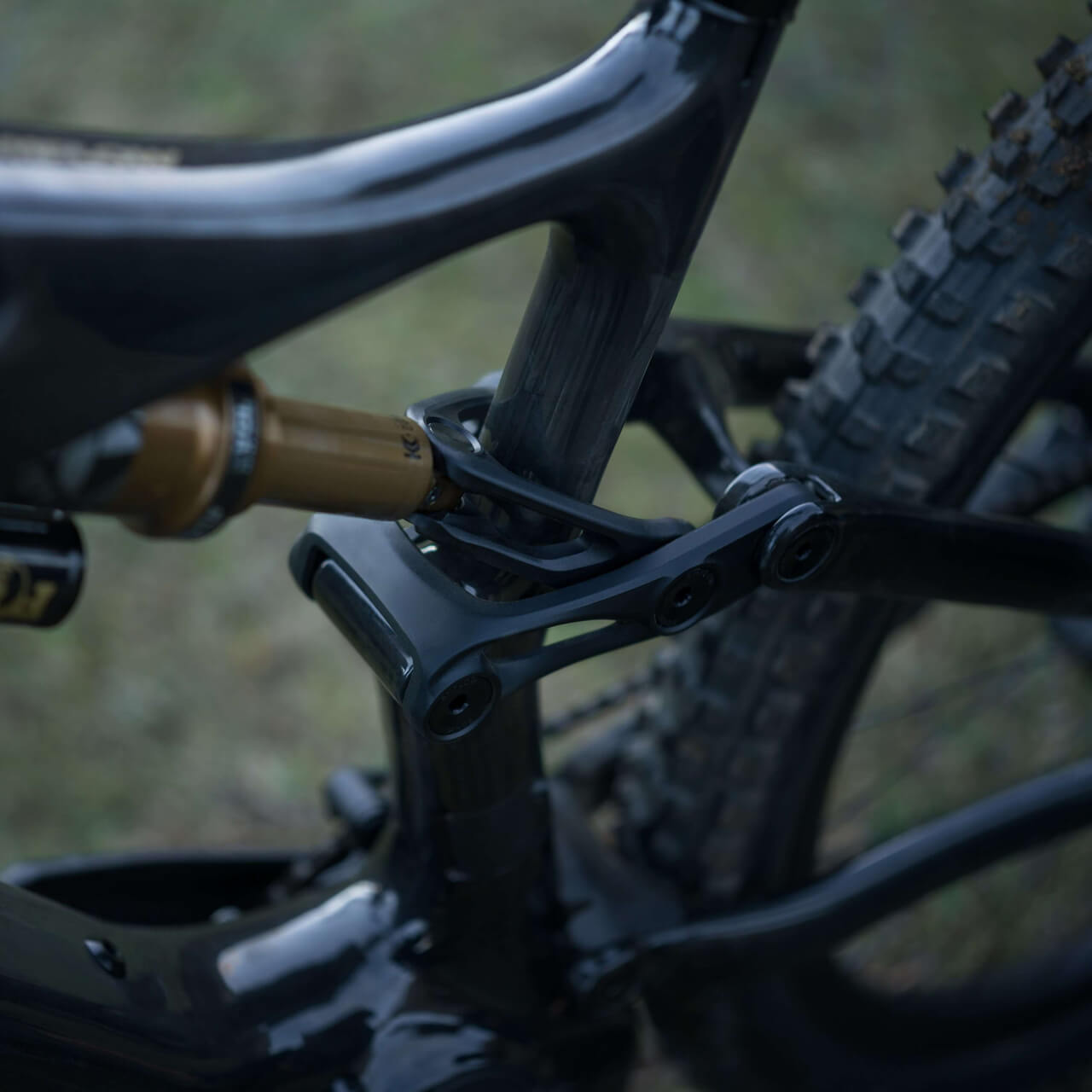

Rear shock

FOX FLOAT X Factory
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment

Fork

FOX 36 Factory
160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake

Transmission

Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1295 Eagle Transmission 10-52T
Chain: SRAM X0 Eagle Transmission Flattop Chain
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

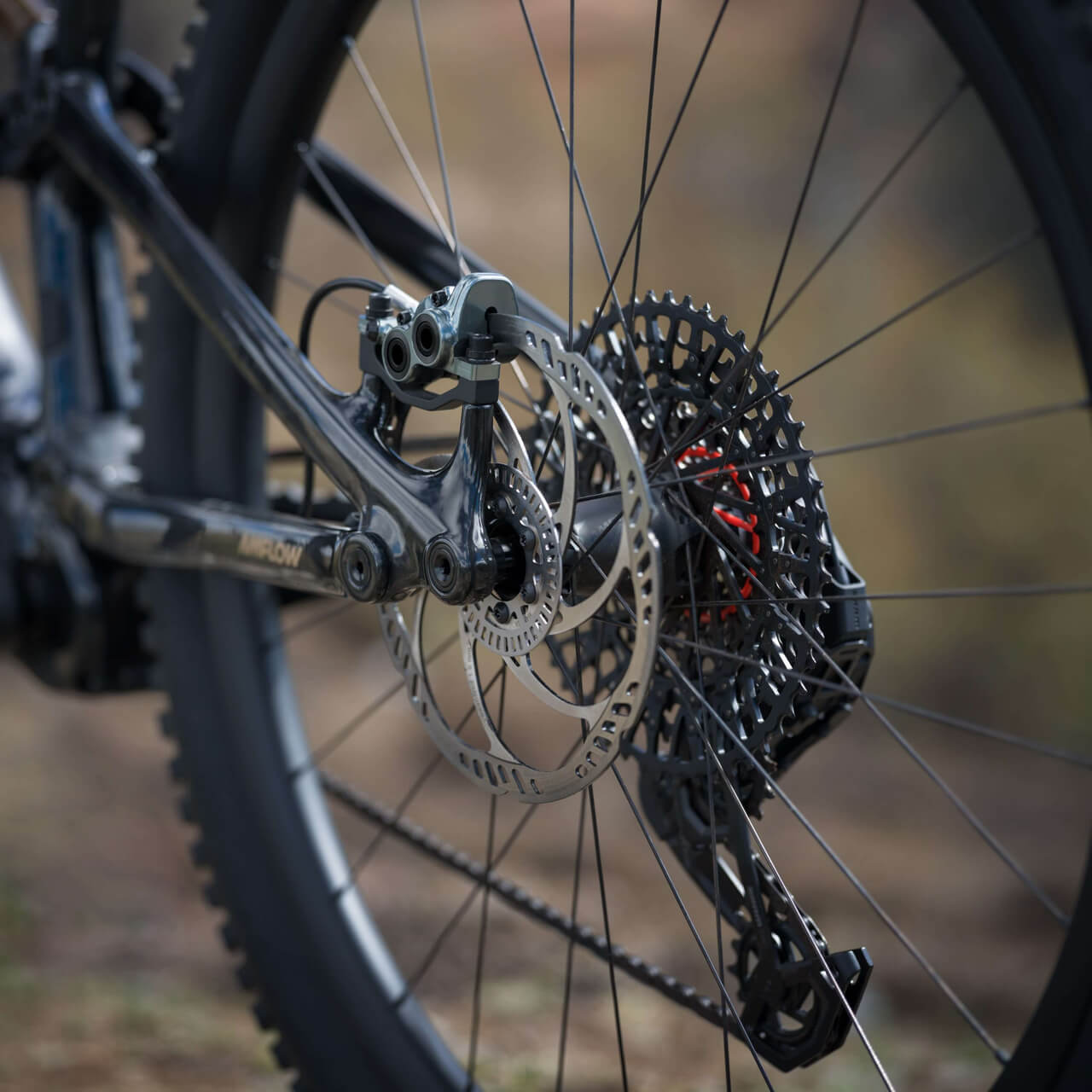

Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)

Wheels

Amflow HMC-30
Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready
Spokes: SAPIM E-Light Straightpull
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T

Tires

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

Amflow Enduro Carbon Handlebar
25mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grips

Stem

Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm

Saddle

Ergon SM PRO M/L

Seatpost

Fox Transfer Factory, Travel adjustable in 5mm
M: 125-150mm
L/XL: 155-180mm
XXL: 185-210mm

Accessories

Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights

Description

Amflow PL Carbon Pro (800 Wh)

Pre-Order (Expected arrived in May 2025)

The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 19.2 kg. [1] With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.

A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride.





Key Features

5 Modes, Effortless Assistance

Auto mode adapts assistance in real-time. Activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.

  • Light Motor, Powerful Drive -
  • Ultra-Light Streamlined Frame - The 19.2kg build uses an ultra-light carbon fiber frame that weighs just 2.27 kg
  • 800Wh Batt., 3x Fast Charging - the bike can reach a range of 157 km.
  • Versatile Geometry - 64.5° head tube angle, a 445mm chainstay length, and a 77° seat tube angle
  • Built-in Touchscreen Display
  • Intelligent Walk Assist

Specifications

Amflow PL Carbon Pro (600Wh/800Wh)

Frame

Amflow PL Carbon Frame
Cosmic Black
150mm rear travel
Compatible with 27.5" and 29" rear wheels

E-Bike System

Avinox M1 Drive Unit: 105 N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 600Wh/800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W

Rear shock

FOX FLOAT X Factory
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment

Fork

FOX 36 Factory
160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake

Transmission

Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1295 Eagle Transmission 10-52T
Chain: SRAM X0 Eagle Transmission Flattop Chain
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)

Wheels

Amflow HMC-30
Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready
Spokes: SAPIM E-Light Straightpull
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T

Tires

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

Amflow Enduro Carbon Handlebar
25mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grips

Stem

Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm

Saddle

Ergon SM PRO M/L

Seatpost

Fox Transfer Factory, Travel adjustable in 5mm
M: 125-150mm
L/XL: 155-180mm
XXL: 185-210mm

Accessories

Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights
