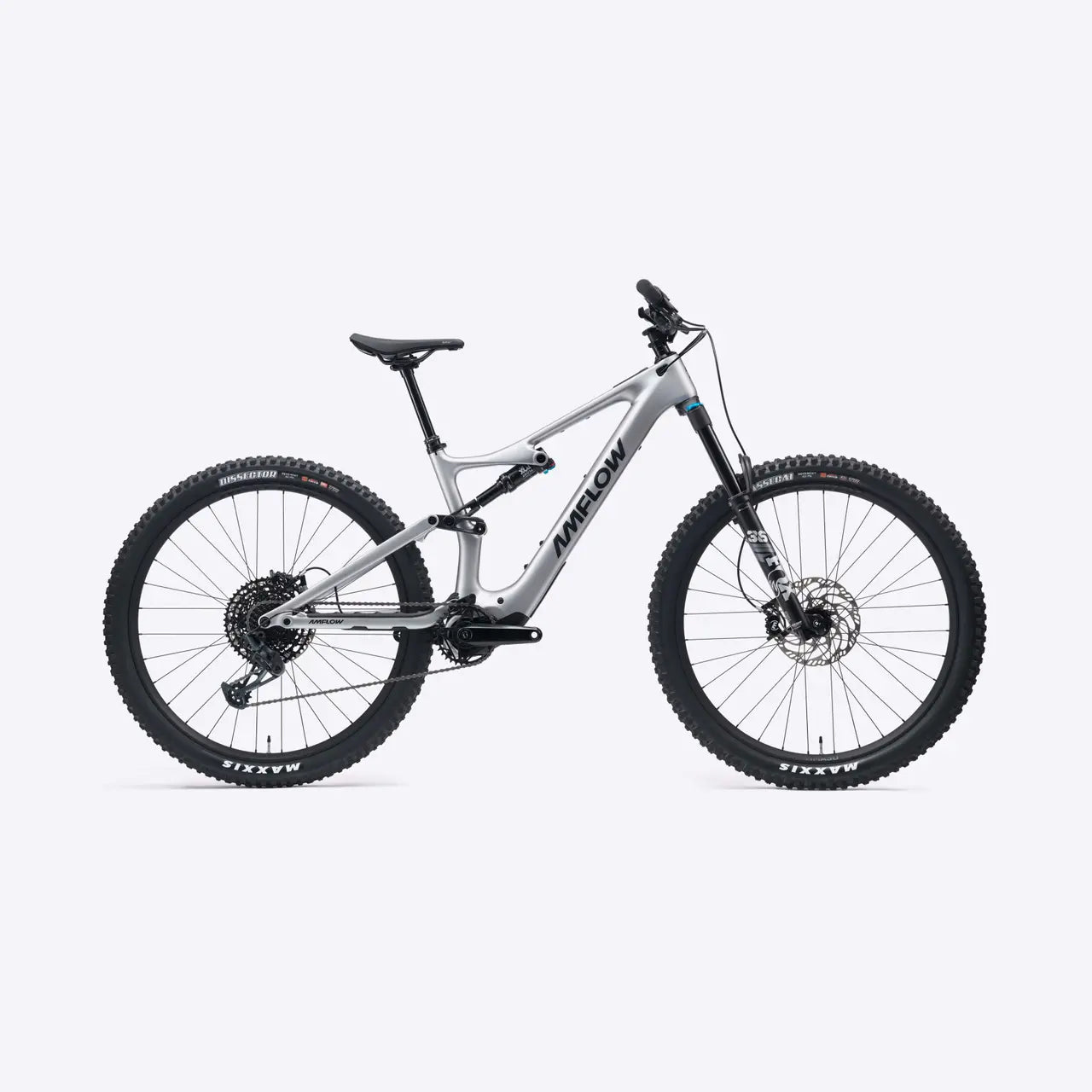

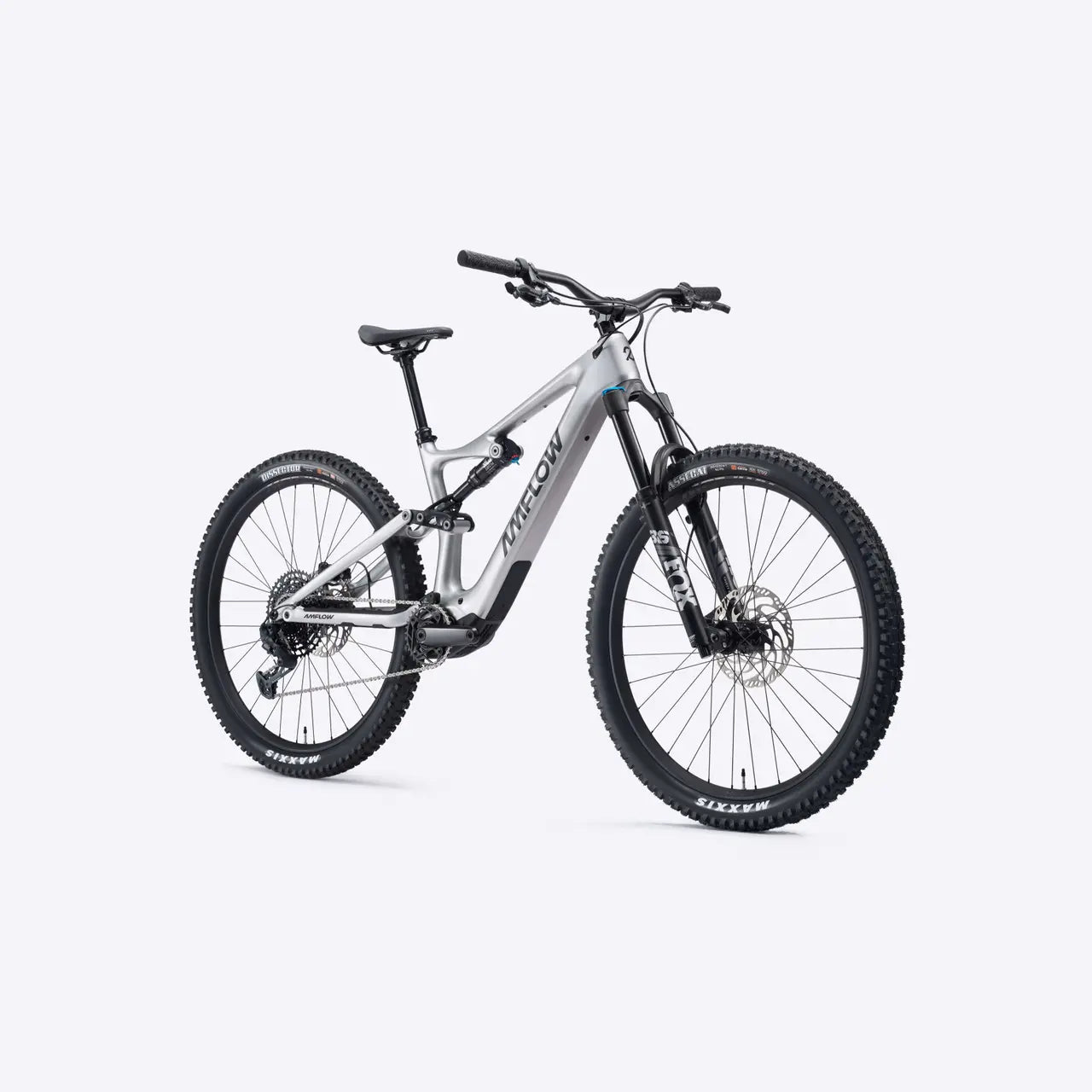

Amflow PL Carbon (800 Wh)

Estimated delivery lead time of 2 weeks

The Amflow PL Carbon is a high-performance electric mountain bike designed for trail enthusiasts seeking power and agility. It features an ultra-light carbon fiber frame that enhances speed and maneuverability. The bike is equipped with the DJI Avinox Drive System, delivering a peak power of 850 watts and a continuous torque of 105 N·m, ensuring robust assistance across diverse terrains. Riders can choose from five assistance modes, including an adaptive Auto mode and a Boost mode that provides up to 120 N·m of torque for challenging climbs. The high-capacity 800 Wh battery offers an impressive range of up to 157 km and supports fast charging, reaching 75% capacity in just 1.5 hours. The bike's geometry, featuring a 64.5° head tube angle, 445 mm chainstay length, and 77° seat tube angle, ensures balanced performance and responsive handling on various terrains.

Key Features

5 Modes, Effortless Assistance

Auto mode adapts assistance in real-time. Activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.

  • Maximum continuous torque: 105 N·m
  • Drive unit weight: 2.52 kg
  • Peak power: 850 W
  • Light Motor, Powerful Drive
  • Ultra-Light Streamlined Frame
  • 800Wh Batt., 3x Fast Charging
  • Versatile Geometry
  • Built-in Touchscreen Display
  • Intelligent Walk Assist


Specification

Frame

Amflow PL Carbon Frame
Satin Silver
150mm rear travel
Compatible with 27.5" and 29" rear wheels

E-Bike System

Avinox M1 Drive Unit: 105 N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W

Rear shock

FOX Float Performance
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Fork

FOX 36 Performance
160mm travel, GRIP Damper, 15×110mm, 44mm rake

Transmission

Rear Derailleur: SRAM GX Eagle 12-speed
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM GX Eagle Trigger Shifter|Single Click
Cassette: SRAM PG-1230, 11-50T
Chain: SRAM NX Eagle
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

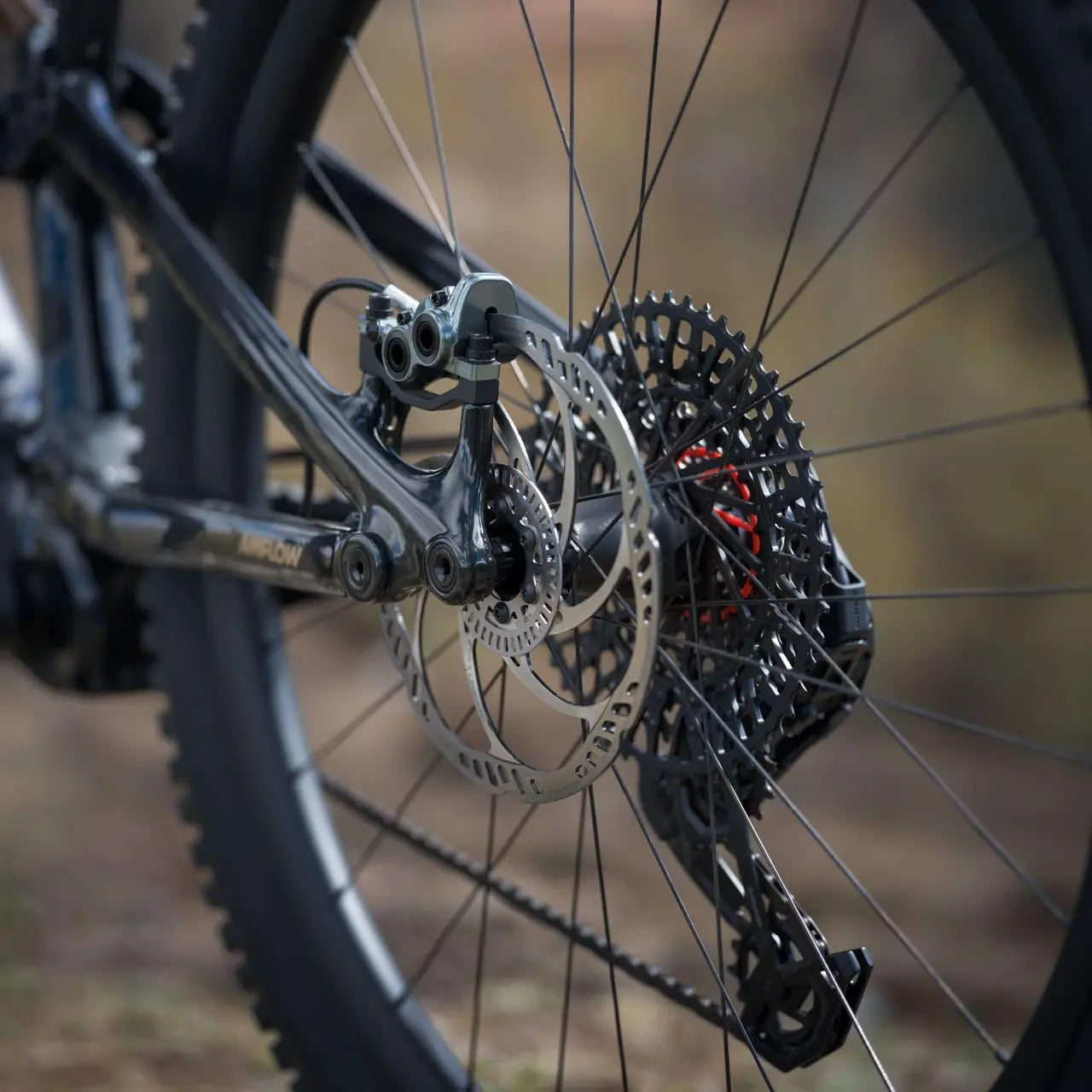

Brakes

Magura MT5 hydraulic disc brake, HC lever,
4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Wheels

Amflow HMA-30
Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes: SAPIM E-Light J-bend
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt,
21T

Tires

Front: Maxxis Assegai MaxxTerra 29×2.5"
WT 3C EXO E-25 TLR

Handlebar

Amflow Enduro Alloy Handlebar
35mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grips

Stem

Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm

Saddle

Selle Royal SRX Plus

Seatpost

KS Rage-i
M: 150mm
L: 170mm
XL/XXL: 190mm

Accessories

Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights

Description

Amflow PL Carbon (800 Wh)

Estimated delivery lead time of 2 weeks

The Amflow PL Carbon is a high-performance electric mountain bike designed for trail enthusiasts seeking power and agility. It features an ultra-light carbon fiber frame that enhances speed and maneuverability. The bike is equipped with the DJI Avinox Drive System, delivering a peak power of 850 watts and a continuous torque of 105 N·m, ensuring robust assistance across diverse terrains. Riders can choose from five assistance modes, including an adaptive Auto mode and a Boost mode that provides up to 120 N·m of torque for challenging climbs. The high-capacity 800 Wh battery offers an impressive range of up to 157 km and supports fast charging, reaching 75% capacity in just 1.5 hours. The bike's geometry, featuring a 64.5° head tube angle, 445 mm chainstay length, and 77° seat tube angle, ensures balanced performance and responsive handling on various terrains.

Key Features

5 Modes, Effortless Assistance

Auto mode adapts assistance in real-time. Activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.

  • Maximum continuous torque: 105 N·m
  • Drive unit weight: 2.52 kg
  • Peak power: 850 W
  • Light Motor, Powerful Drive
  • Ultra-Light Streamlined Frame
  • 800Wh Batt., 3x Fast Charging
  • Versatile Geometry
  • Built-in Touchscreen Display
  • Intelligent Walk Assist


Specifications

Specification

Frame

Amflow PL Carbon Frame
Satin Silver
150mm rear travel
Compatible with 27.5" and 29" rear wheels

E-Bike System

Avinox M1 Drive Unit: 105 N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W

Rear shock

FOX Float Performance
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Fork

FOX 36 Performance
160mm travel, GRIP Damper, 15×110mm, 44mm rake

Transmission

Rear Derailleur: SRAM GX Eagle 12-speed
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM GX Eagle Trigger Shifter|Single Click
Cassette: SRAM PG-1230, 11-50T
Chain: SRAM NX Eagle
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

Magura MT5 hydraulic disc brake, HC lever,
4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Wheels

Amflow HMA-30
Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes: SAPIM E-Light J-bend
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt,
21T

Tires

Front: Maxxis Assegai MaxxTerra 29×2.5"
WT 3C EXO E-25 TLR

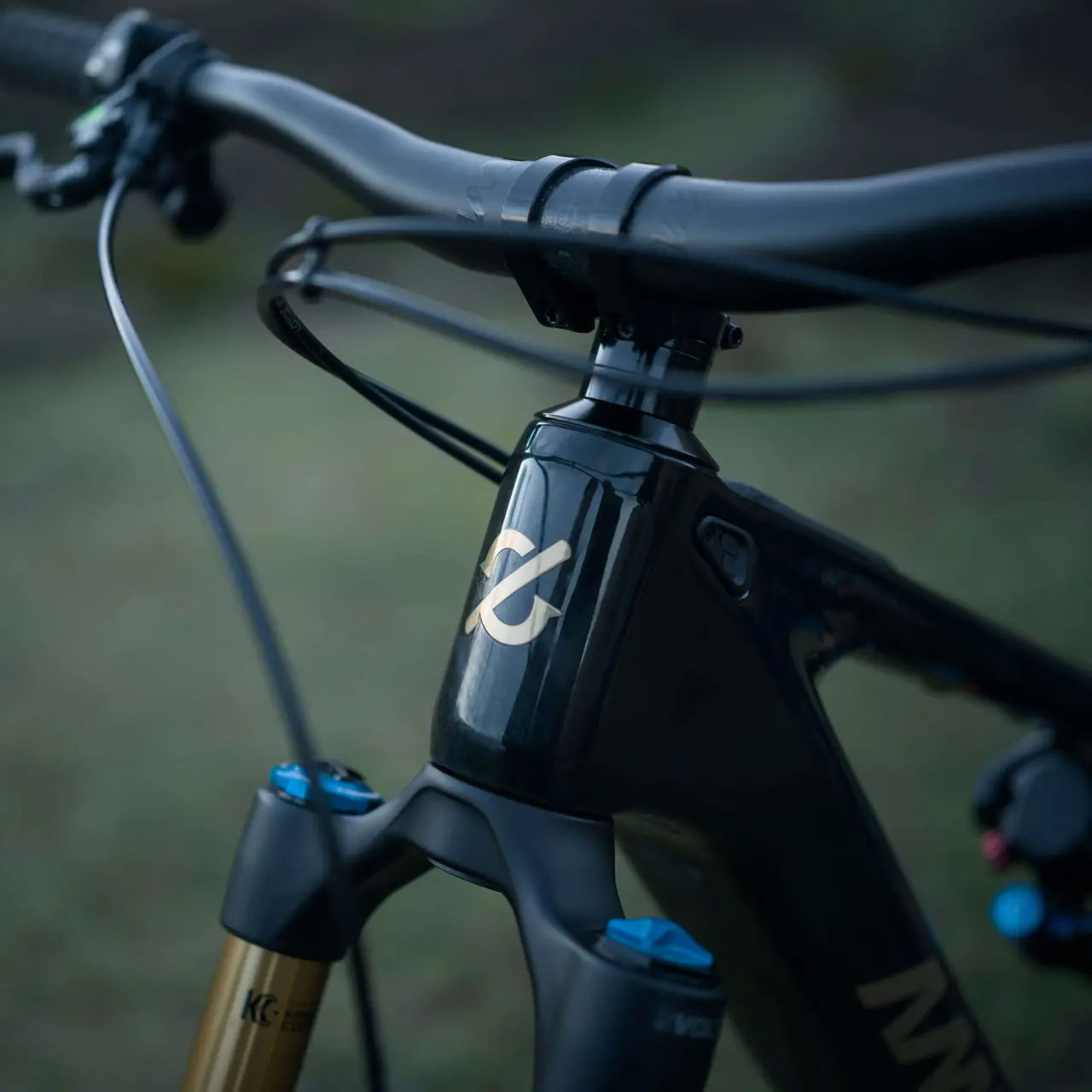

Handlebar

Amflow Enduro Alloy Handlebar
35mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grips

Stem

Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm

Saddle

Selle Royal SRX Plus

Seatpost

KS Rage-i
M: 150mm
L: 170mm
XL/XXL: 190mm

Accessories

Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights

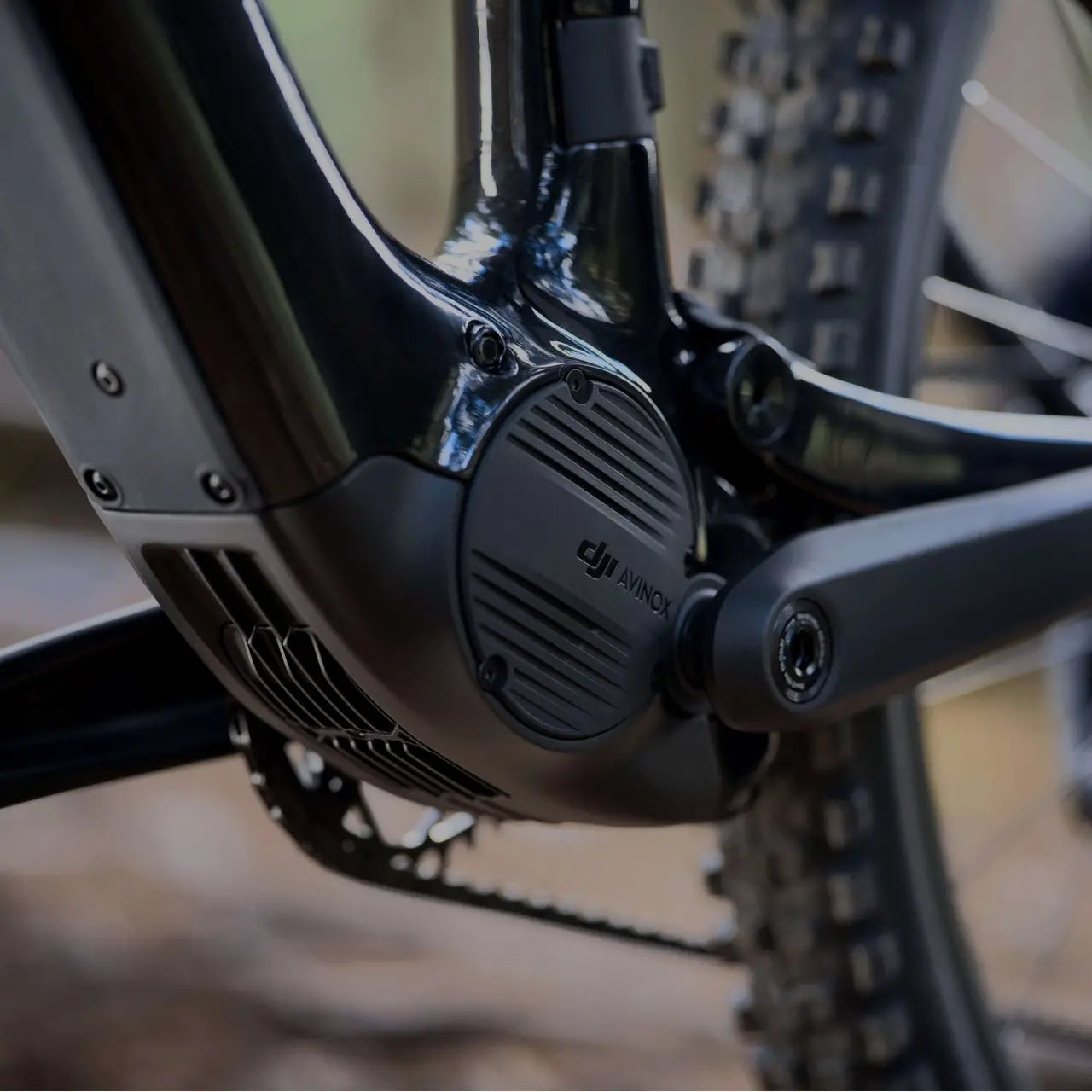

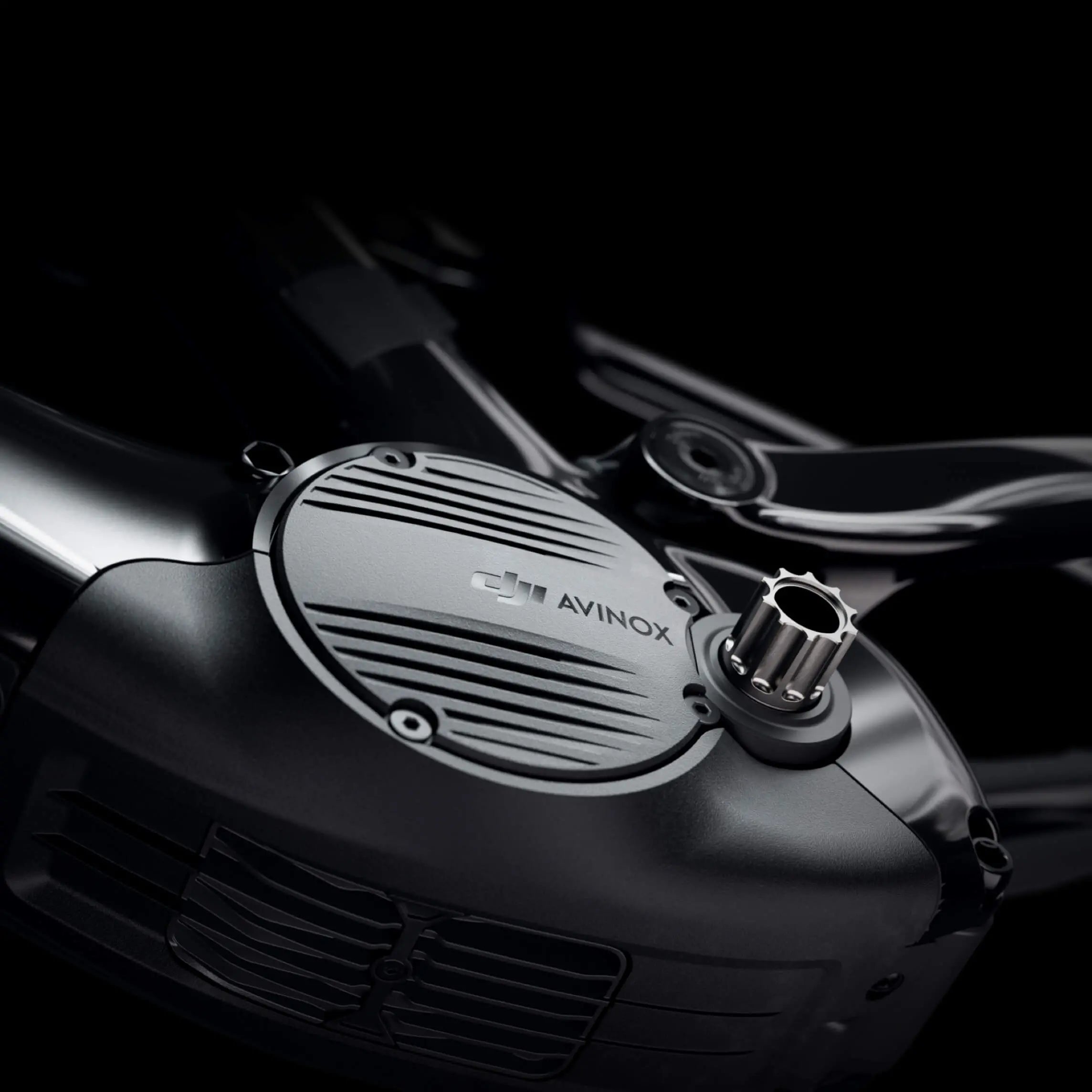

Light Motor, Powerful Drive

Light Motor, Powerful Drive

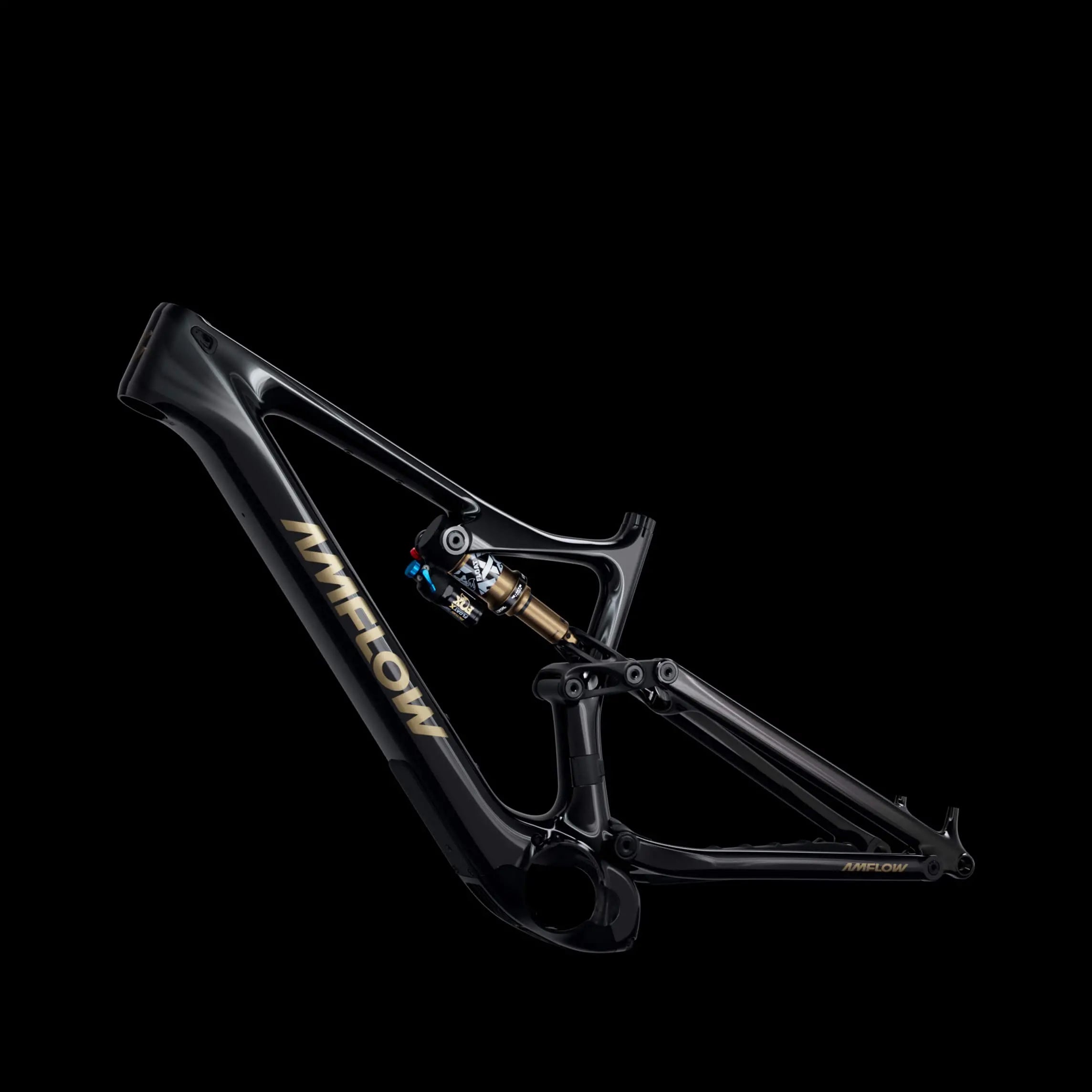

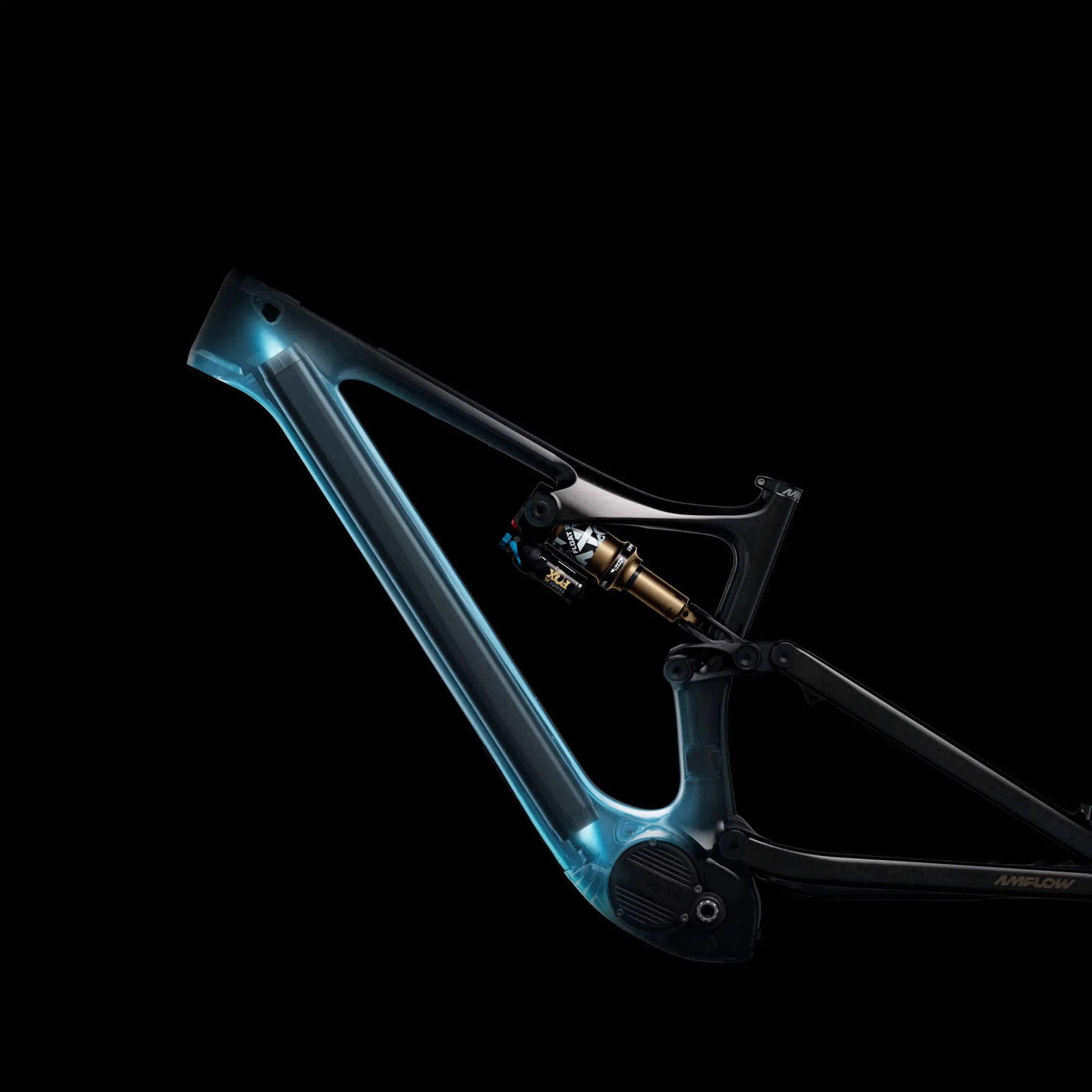

Ultra-Light Streamlined Frame

Ultra-Light Streamlined Frame

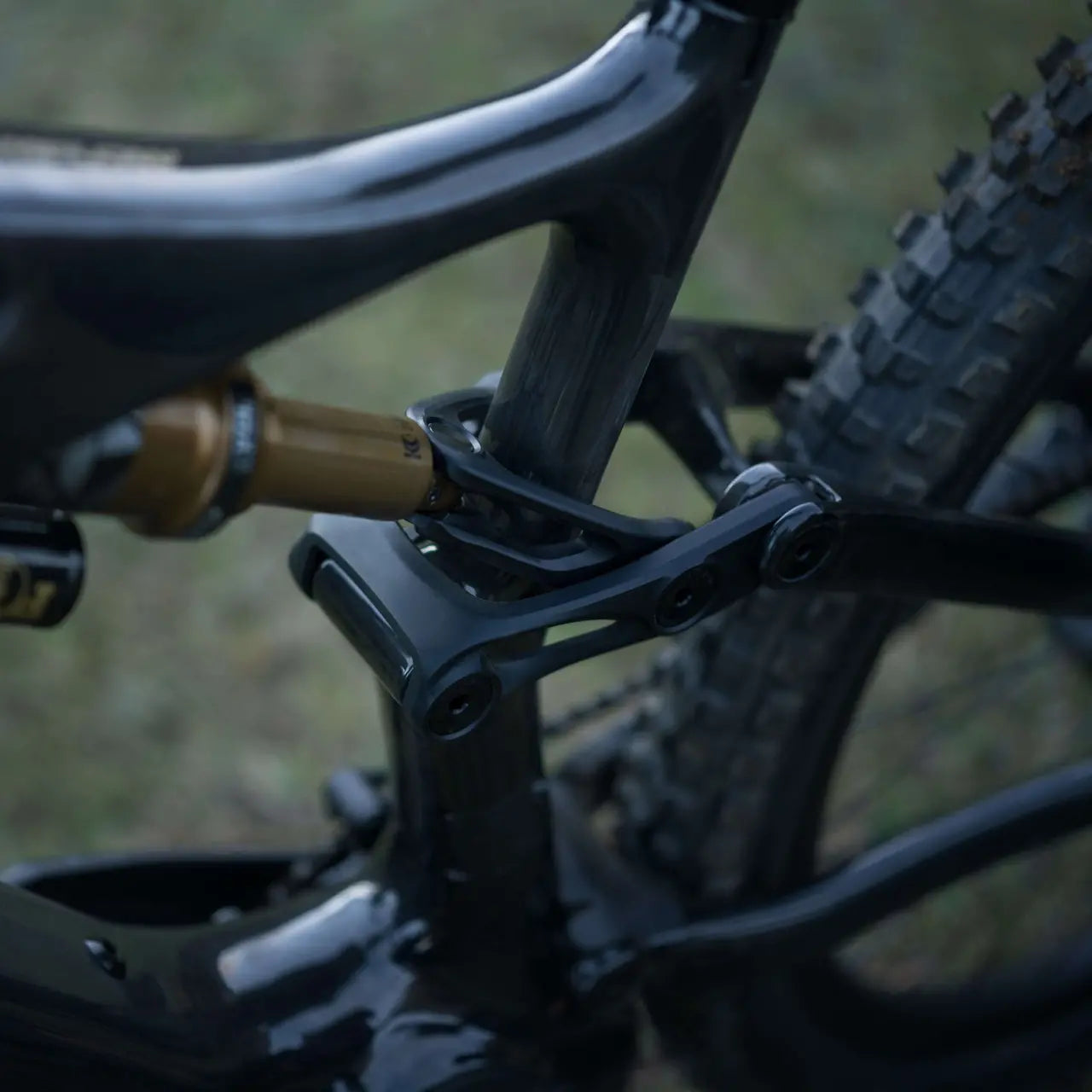

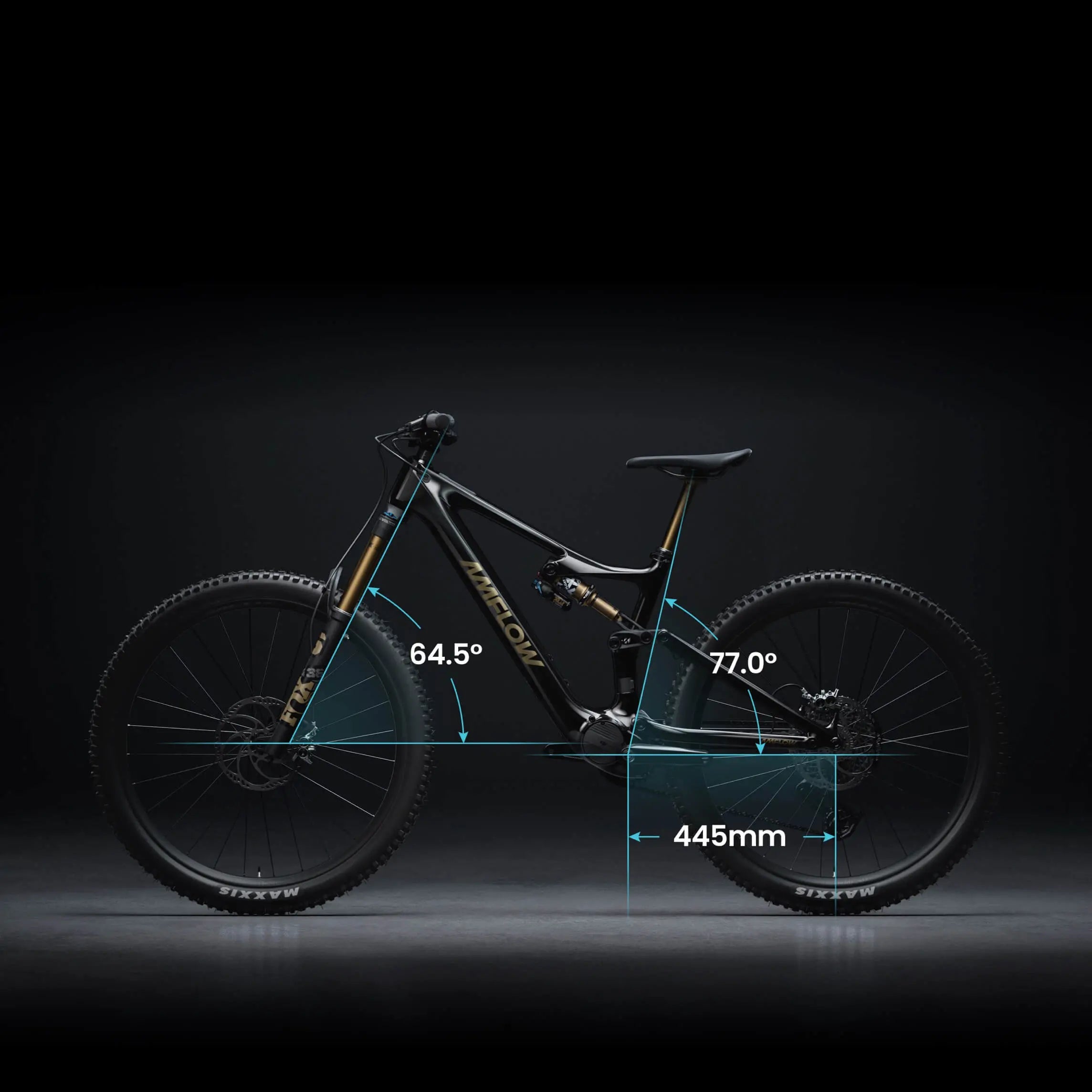

Versatile Geometry

Versatile Geometry

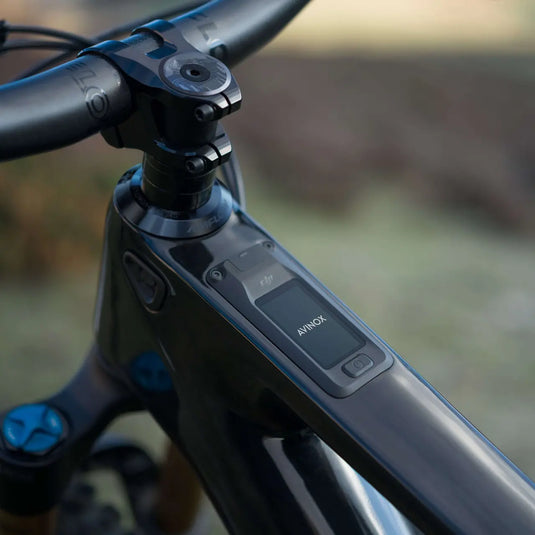

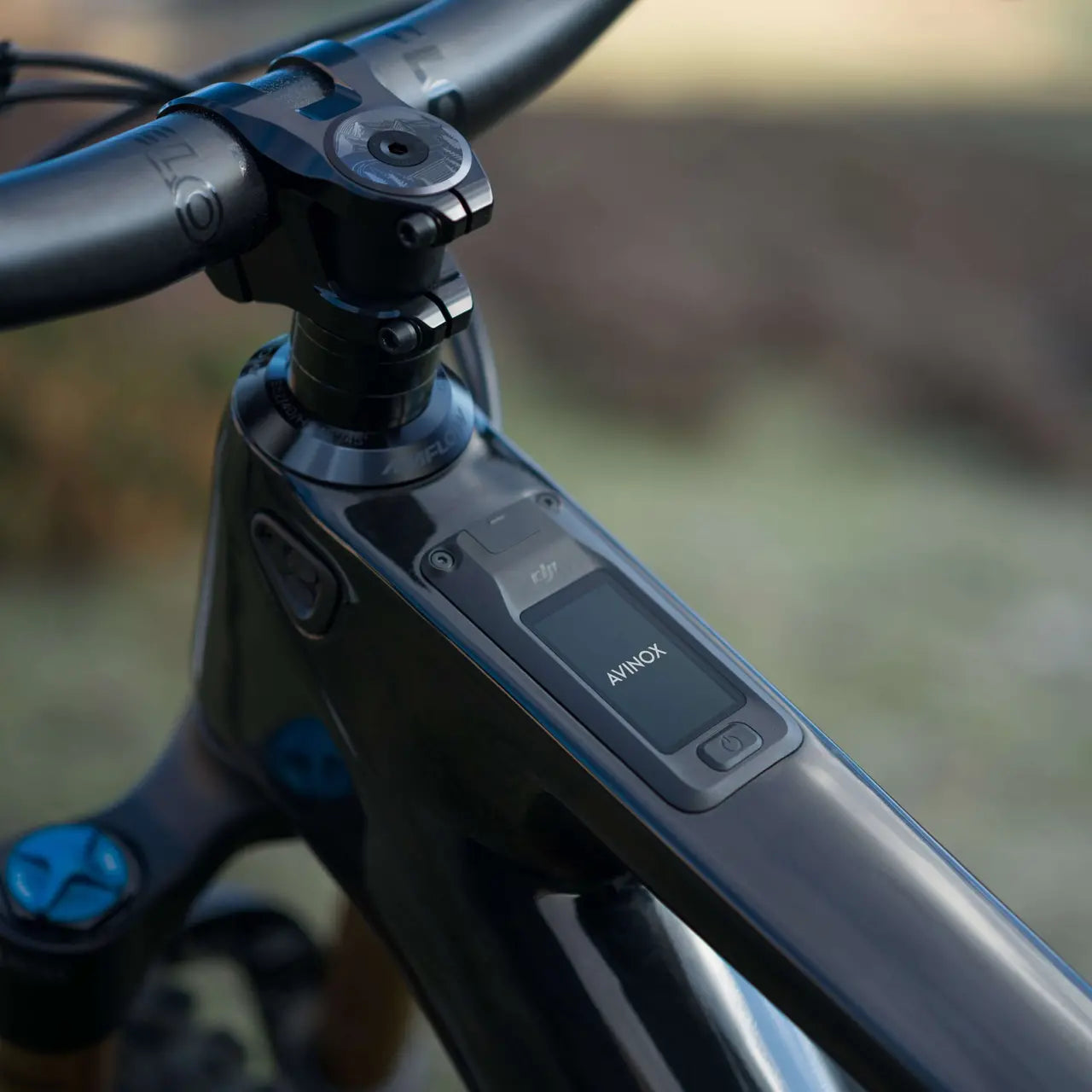

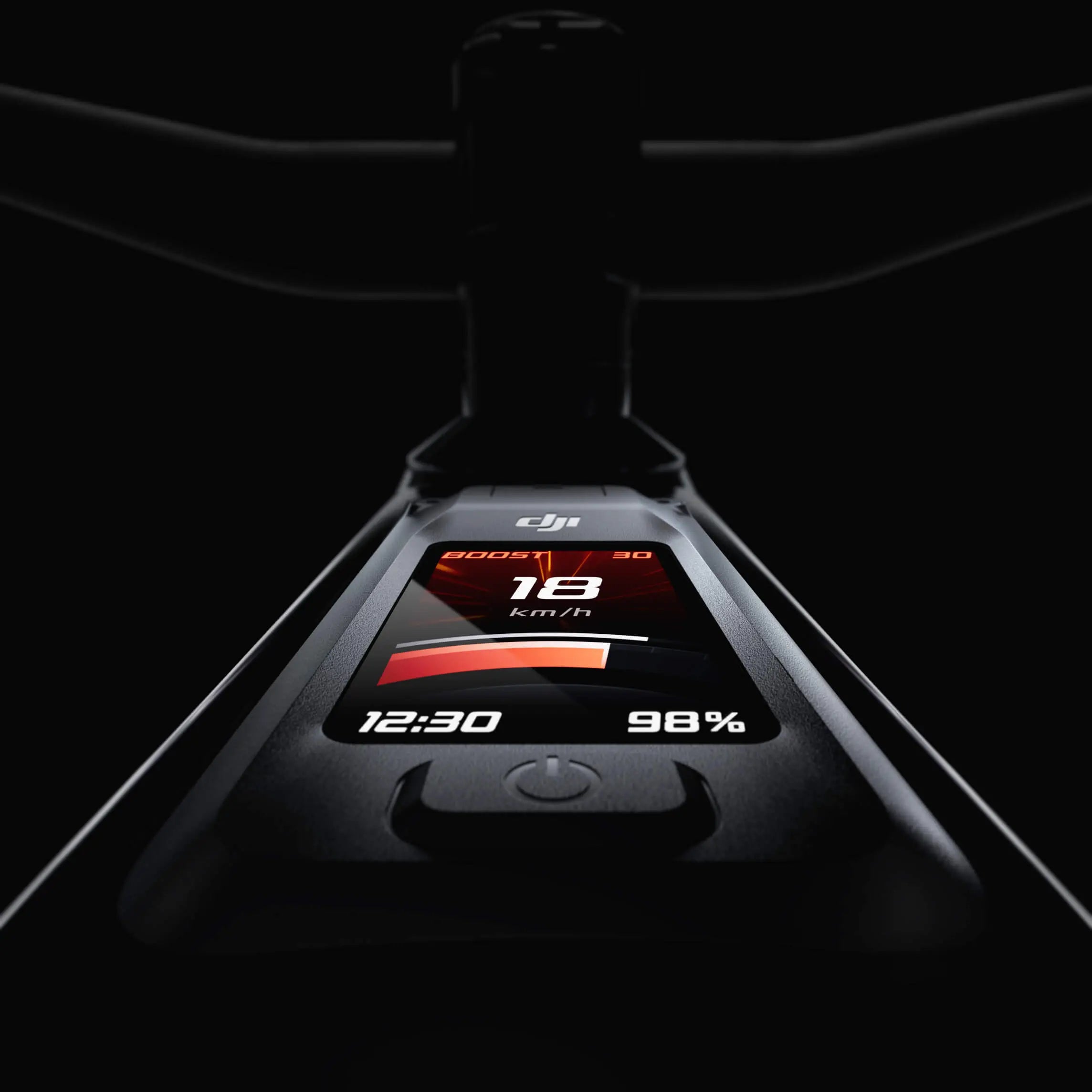

Built-in Touchscreen Display
